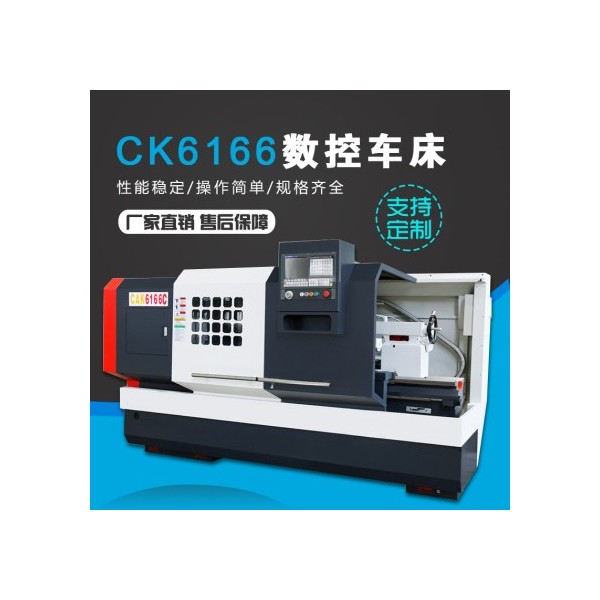

CK6166数控车床

床身上最大回转直径

Swing over bed

mm

660

横滑板上最大回转直径

Swing over cross slide

mm

380

最大工件长度

Distance between centers

mm

750/1000/1500/2000/3000

主轴孔径范围

Spindle bore

mm

(80 for B),[105 for C]

主轴孔径锥度

Spindle bore taper

-

(φ90 1:20 for B),[φ113 1:20 for C]

主轴鼻端型号

Spindle nose type

-

C6,(D8 for B),[D8 for C]

主轴转速级数

Spindle speed steps

-

手动3档Manual 3 steps (选配Optional: stepless)

主轴转速范围

Spindle speed range

rpm

21-150,66-500,162-1500  (选配Optional: 100-1600 )

刀架类型

Turret/tool post

-

4工位电动刀架

Eletric 4 position

刀具尺寸

Tool size

mm

25 x 25

X轴行程

X axis travel

mm

330

Z轴行程

Z axis travel

mm

750/1000/1500/2000/3000

X轴快速进给速度

X axis rapid traverse

mm/min

6000

Z轴快速进给速度

Z axis rapid traverse

mm/min

10000

尾座套筒直径

Tailstock quill diameter

mm

75

尾座套筒锥度

Tailstock quill taper

-

MT5

尾座套筒行程

Tailstock quill travel

mm

150

主轴电机

Main spindle motor

kw

11

冷却泵电机

Coolant pump motor

kw

0.125

机床重量

Machine weight

Weight for 750

kg

2650

Weight for 1000

kg

2750

Weight for 1500

kg

2850

Weight for 2000

kg

3350

Weight for 3000

kg

4150

外形尺寸

Overall dimension

Dimension for 750

mm

2550x1750x1850

Dimension for 1000

mm

2750x1750x1850

Dimension for 1500

mm

3250x1750x1850

Dimension for 2000

mm

3700x1750x1850

Dimension for 3000

mm

4710x1750x1850
