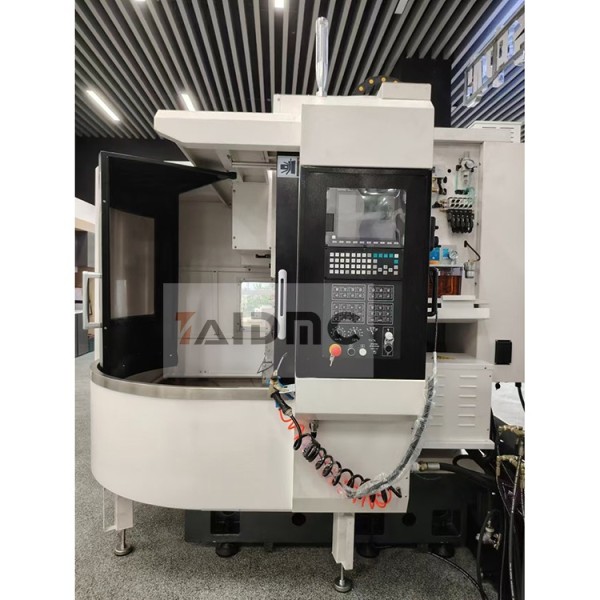

U480 vertical five axis

C-axis disk size 320 mm

Rated torque of A/C shaft 406/122 Nm

Rated speed of A/C shaft 50/100 rpm

A-axis rotation angle ± 110 °

Five axis weight 240 kg

Five axis load capacity of 120 kg

The distance from the spindle end face to the five axis table top is 80mm

Processing range stroke: X-axis 550 mm

Travel: Y-axis 600 mm

Travel: Z-axis 550 mm

The distance from the spindle center to the column is 540 mm

Spindle spindle form: direct connection type-

Rotation speed 15000 rpm

Conical hole BBT40

Diameter of 150 mm

Feed cutting feed rate range 5-10000 mm/min

Quickly move X-axis at 36 m/min

Y-axis 36

Z-axis 36

Knife magazine (optional for customers) with a capacity of 24T pcs

Maximum diameter of cutting tool (adjacent gap) 80 (125) mm

The maximum length of the cutting tool is 300 mm

The maximum weight of the cutting tool is 8 kg

Tool change time (near the knife) 1.6 Sec

Positioning accuracy XYZ three-axis ± 0.005/300 mm

Repetitive positioning accuracy XYZ three-axis ± 0.003/300 mm

Required air pressure 6 kgf/cm2

Required gas flow rate 0.15 m ³/min

The weight of the host is about 5200 kg

Our company's products are constantly being developed and improved. If there are any changes to the specifications, no further notice will be given, and the actual shipped products shall prevail.
